Description
SALIENT FEATURES
- OT Table Four section RADIO – TRANSLUCENT Table Top
- Operating Positions: Height Adjustment, Lateral Tilt, Trendelenburg, Reverse Trendelenburg and Back Section should be precisely and smoothly controlled by REMOTE SWITCH with feather touch controls through ELECTRO-HYDRAULIC SYSTEM
- The remote is ergonomically designed to have an easy and better grip with spiral cable and have LED backlit screen with symbolic position figures making it convenient to use even in the dark
- Zero position facility i.e. by pressing the single button OT Table come to normal position
- Patient reverse orientation mode when head and leg section are interchanged
- Store up to two preset table top position in its memory which can be recalled anytime by simply pressing M1 or M2 button on the remote
- Remote control have function of locking operating positions to prevent accidental movement of that position during surgery
- Head & Foot Section are manually operated by the means of Ratchet System
- Stainless steel Covered Base and Column Covers for easy cleaning and hygiene
- Complete with Stainless steel side-rails, Clamps and Standard Accessories
| Technical Data |
| Table Top Length | 1900 mm |
| Table Top Width | 500 mm |
| Height | 750 – 1000 mm |
| Trendeleberg, Reverse Trendeleberg | ±25° |
| Lateral Tilt | ±15° |
| Back Section | + 80° – 20° down |
| Leg Section | – 90° |
| Head Section | + 45° – 90° down Variation ±10% |
STANDARD ACCESSORIES
| L-shaped Anaesthetic Frame: | 1 Pc. |
| Shoulder Support with Pad: | 2 Pcs. |
| Arm Board with S.S Top: | 2 Pcs. |
| Lateral Support with pad: | 2 Pcs. |
| Wrist Strap: | 2 Pcs. |
| Goepel type special Lithotomy Crutches-padded with Straps | 2 Pcs. |
OPTIONAL ACCESSORIES
- Ortho-Surgery
– Orthopaedic Leg Traction Device.
– Orthopaedic Hand Traction Device.
– Hip Nailing Support (Inner thigh rest with pad).
– Tibia Support (L-shaped knee rest with pad).
– Steinmein Pin Holding Clamp
- For Miscellaneous
– Water Proof Rubber Mattress
– Radio-Transucent Table Top for Radiography
– Cassette Holder with Carrier for A.P Radiography
– Stainless Steel Lateral Cassette Holder
– Stainless Steel Instrument Tray with frame hanger.
– Stainless Steel Mayo’s Tray with frame hanger
– Adjustable Arm support with cushion for Lateral position.
– Saline Drip Rod with clamp
- For Neurosurgery
– Neurosurgical Attachment for Prone / Sitting Up-position Head Rest.
– 3 Pin Skull-Clamp for Mircro-Neuro-Surgery.
– Sugita Head Clamp for Prone/Sitting Position.
– Spinal Bridge.
– ‘M’ type face Head Rest.
- Gynae / Urology Surgery
– Stainless steel Transurethral Tray with sieve and drain hose
– Stainless steel drainage tray with drain hose
 |
 |
| Radiolucent table top | Long lasting PU Pads |
 |
|
| Remote |
 |
 |
|---|---|

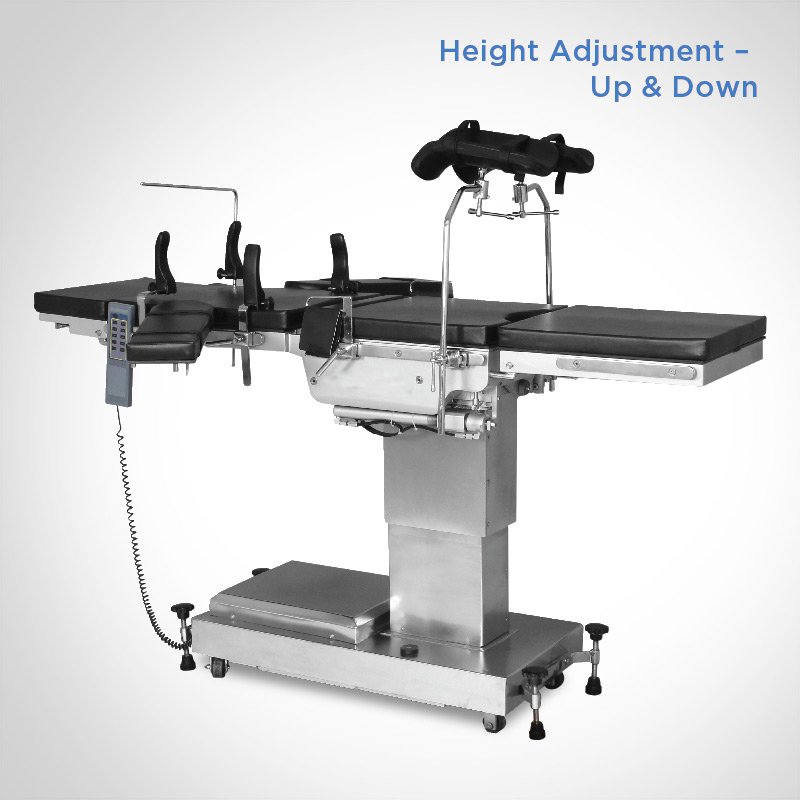

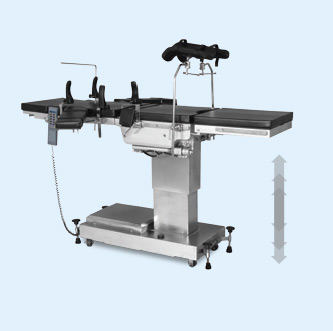

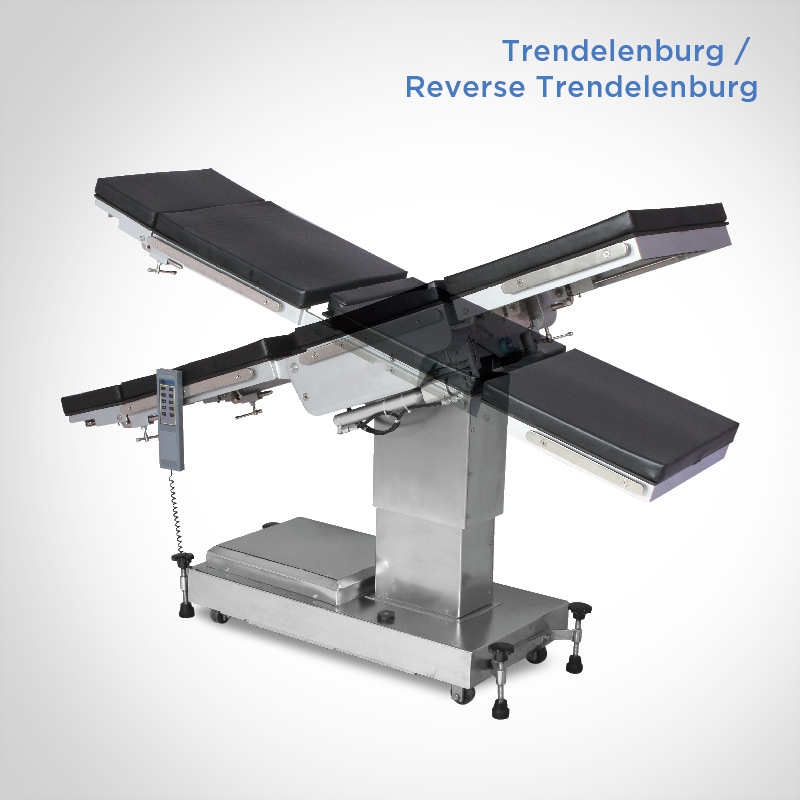

| Height Adjustment – Up & Down | Trendelenburg / Reverse Tredelenburg |
 |
 |
|---|---|

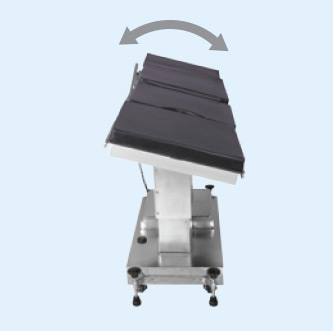

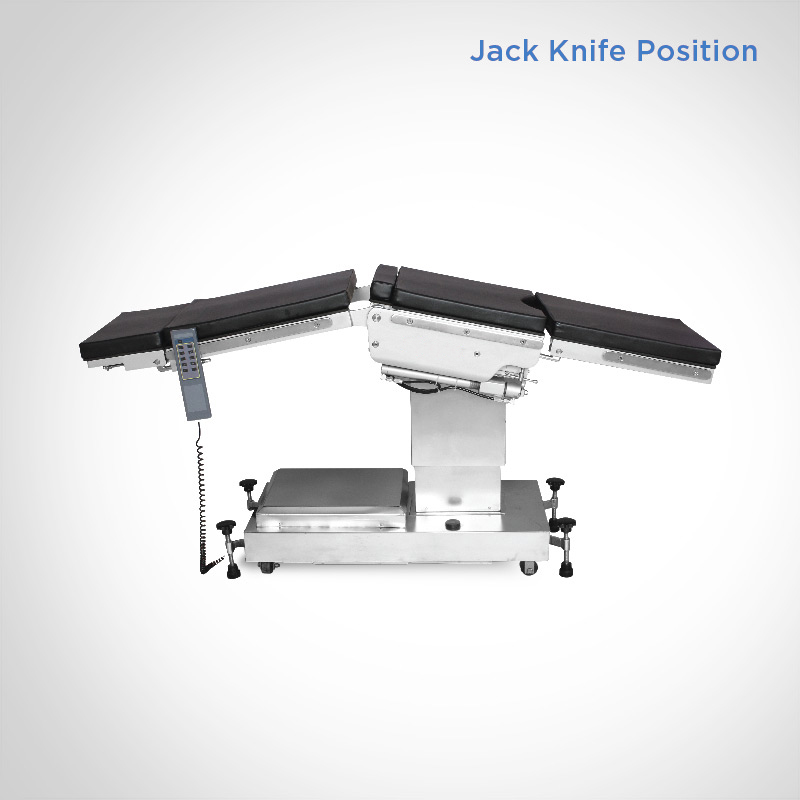

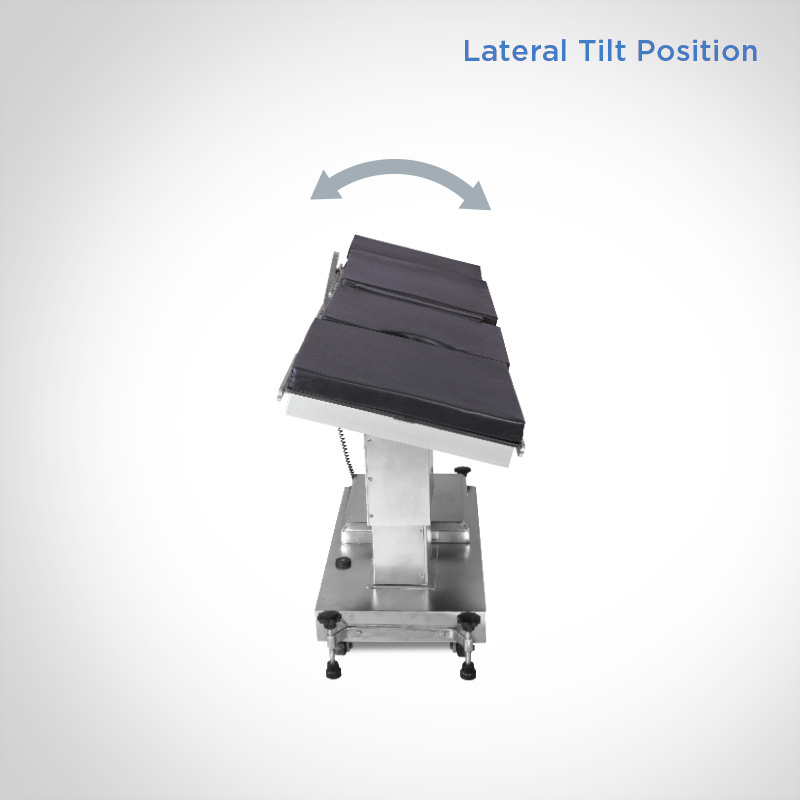

| Lateral Tilt Position | Jack Knife Position |
 |
 |
|---|---|

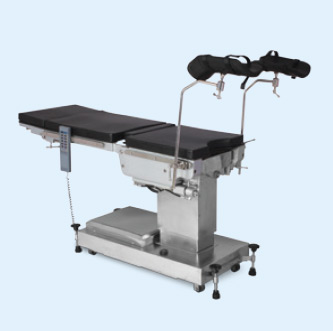

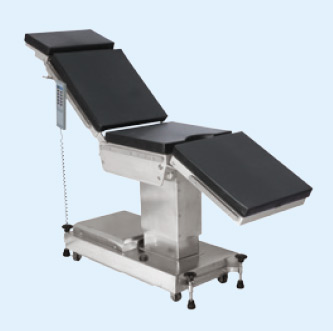

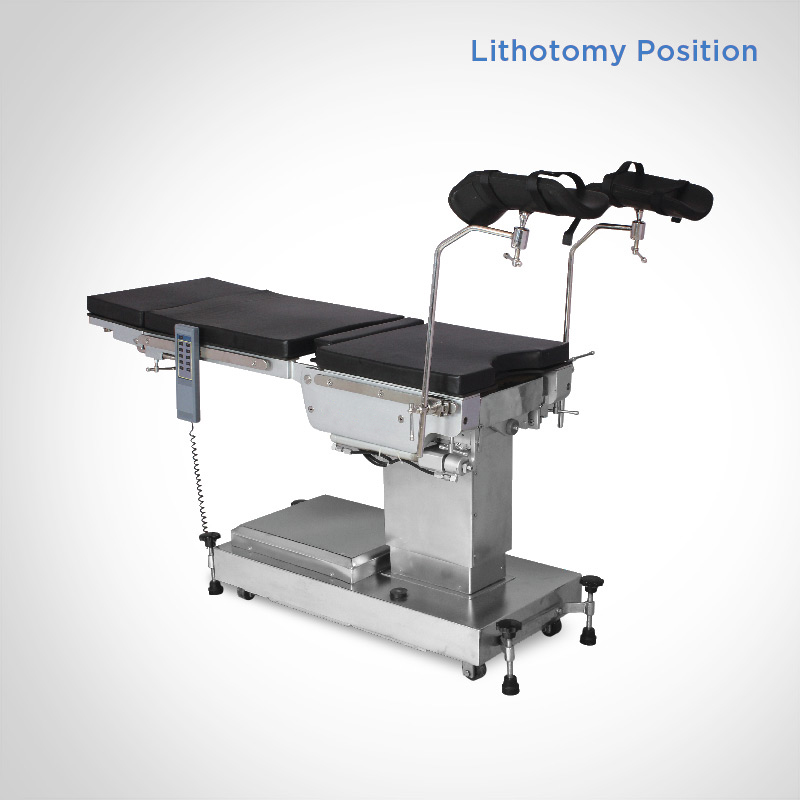

| Lithotomy Position | Chair Position |
 |
|

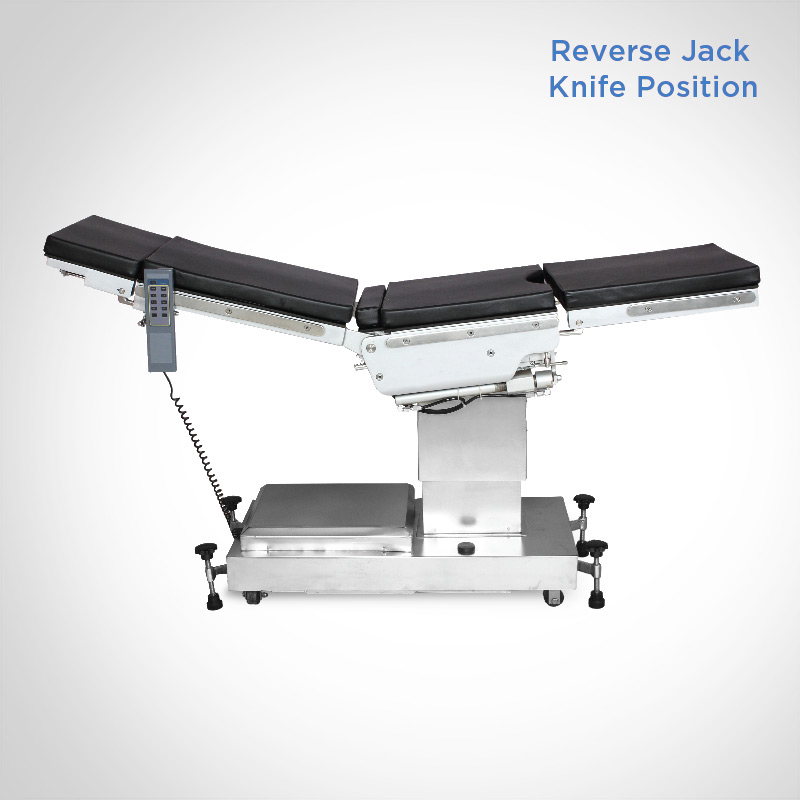

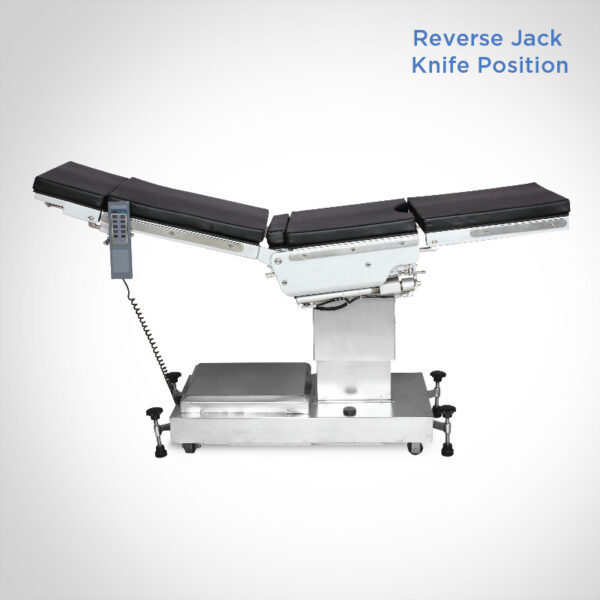

| Reverse Jack Knife Position |
