Description
SPECIALLY DESIGNED FOR ‘C’ ARM IMAGE INTENSIFIER.

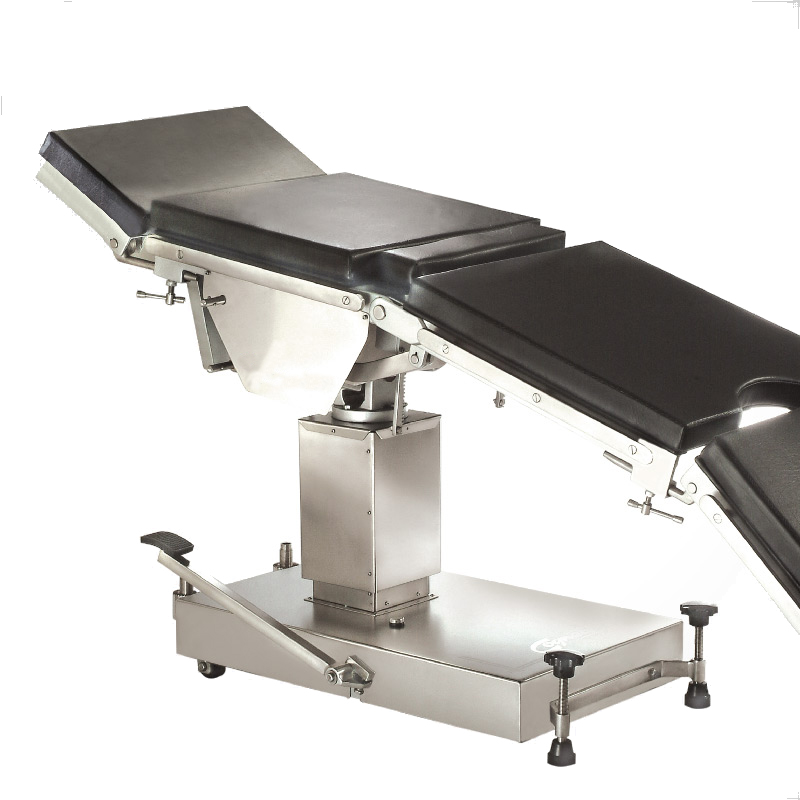

The Anand SS-1000 is a sophisticated yet economical hydraulic surgical operating table specially designed for C-arm image intensifier. A universal surgical use ranging from microsurgery to general has been assured due to its versatile and a wide range of accessories to support modern operating techniques.
SALIENT FEATURES
- The eccentrically positioned table top, without cross members, to optimize image intensifier accessibility for both A/P and Lateral Exposures.
- Interchangeable Head & Leg Sections allow Full table length use of image intensification.
- Five section table top made of Radio Translucent material for fluoroscopic capability allows excellent patient positional characteristics.Precision made Hydraulic System with a single lever action Hydraulic Lift controlled by a foot pedal.
- Operation position including Trendelenberg, Reverse Trendelenberb, Lateral Tilt, Lithotomy, Chair and Break- back etc. can all be easily controlled from side-end by working of different handles.
- Built-in Kidney elevator.
- A strong and study base incorporating four swivel castors with independent locking system ensures stability and smooth movements.
- Base and column cover are made of stainless steel for durability and easy cleaning.
- Stainless Steel side rails with accept all standard accessories.
STANDARD ACCESSORIES
| L-shaped Anaesthetic Frame: | 1 Pc. |
| Shoulder Support with Pad: | 2 Pcs. |
| Arm Board with S.S Top: | 2 Pcs. |
| Lateral Support with pad: | 2 Pcs. |
| Wrist Strap: | 2 Pcs. |
| Knee Crutches Goepal Type: | 2 Pcs. |
| Water proof Rubber Mattress: | 1 Set. |
OPTIONAL ACCESSORIES
- Gynae / Urology Surgery
– Stainless Steel Transurethral Tray with sieve drain hose
– Stainless Steel Drainage Tray with drain hose
- For Miscellaneous
– Radio-Translucent Table top for Radiography (X-Ray)
– Cassette Holder with Carrier for A.P. Radiography
– Stainless Steel Lateral Cassette Holder
– Stainless Steel Instrument Tray with frame hanger
– Stainless Steel Mayo’s Tray with frame hanger.
– Adjustable Arm support with cushion for Lateral Position
– Saline Drip Rod with Clamp
- Ortho-Surgery
– Orthopaedic leg traction device
– Hand traction device
– Poplital support
– Radiolucent Hand Operating Table
– Hip Nailing support
– Tibia support
– Steinmain pin Holding Clamp
- Neuro-Surgery
– Neurosurgical Attachment for Prone / Sitting up position Head- Rest
– 3 Pin Skull Clamp for Prone / Sitting Position
– Sugita Head for Clamp Prone & Sitting Position
– Spinal Bridge.
– ‘M’ Type Face Head Rest for Prone / Sitting Position
 |
 |
|---|---|

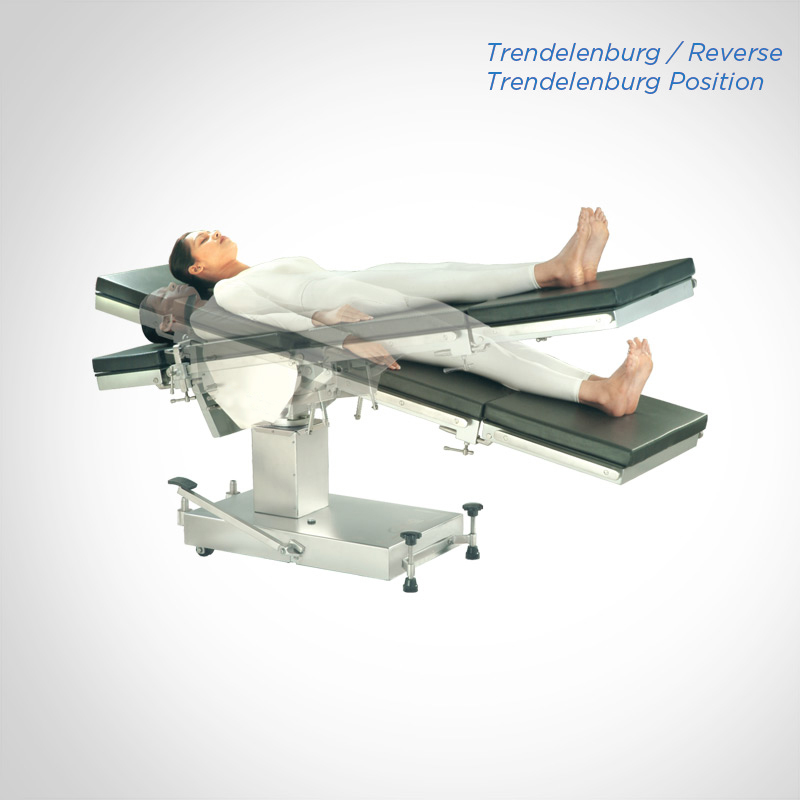

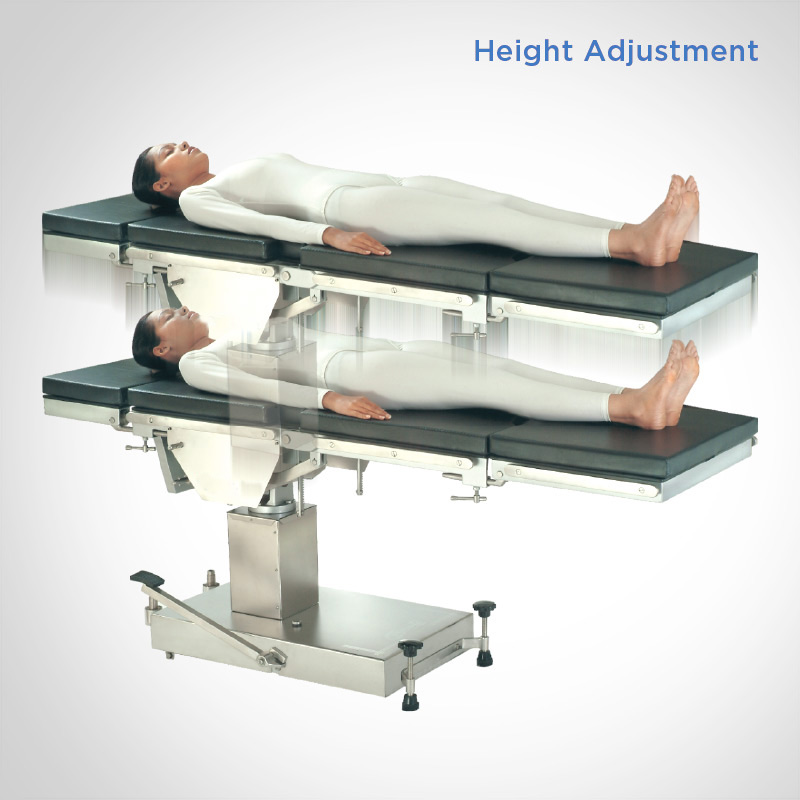

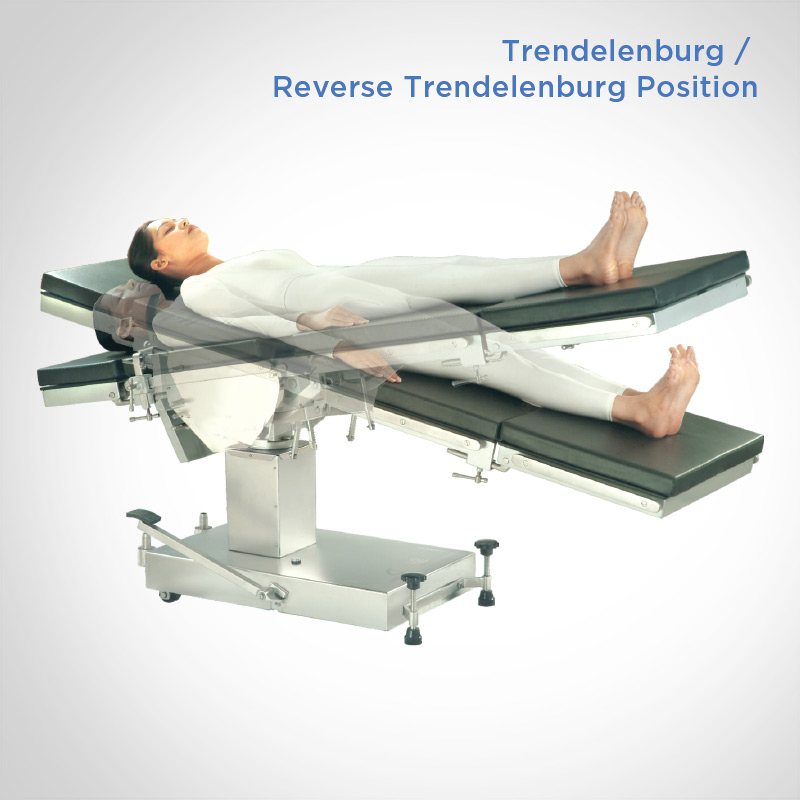

| Height Adjustment | Trendelenburg / Reverse Tredelenburg Position |
 |
|
|---|---|

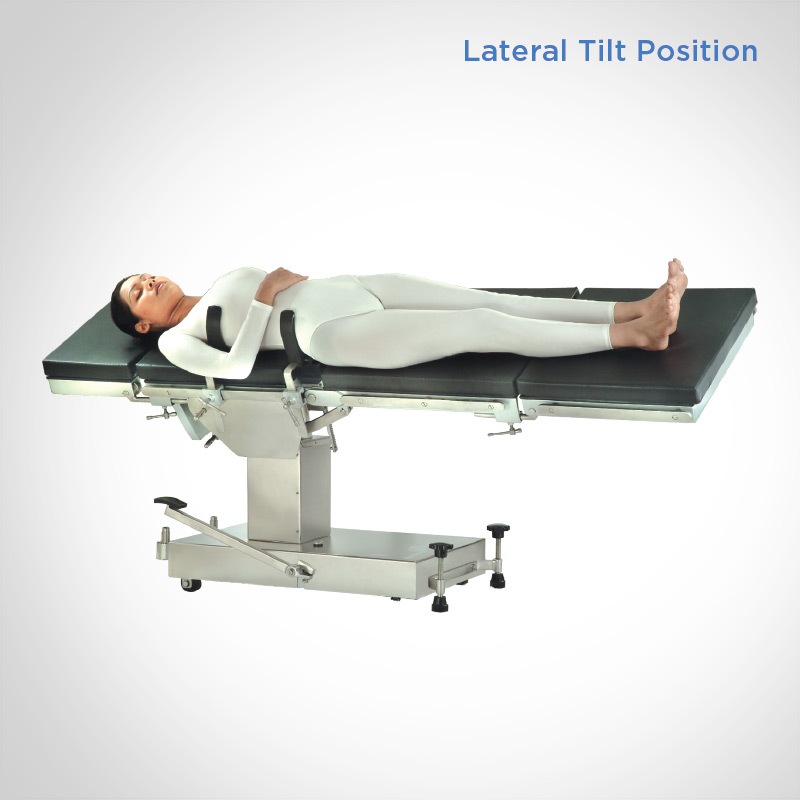

| Lateral Tilt Position |
 |
 |
| Lithotomy Position | Kidney Position |
 |
 |
| Surgery of the neck of femur (side view) |
Tibia nailing using Tibia support (Front View) |
 |
 |
| Surgery of knee using Steinmein Pin |
Surgery of the neck of femur (Front View) |
 |
 |
| Femur treatment in Supine position (Front View) |
Nailing of the humorous by the elbow using Hand Traction Device |
 |
 |
| Radiolucent Hand Operating Table |
Femoral stem fracture procedure in lateral position with Steinmein Pin Holder using Hip Nailing Support (Front View) |
 |
|
| Femoral stem fracture procedure in lateral position with Steinmein Pin Holder using Hip Nailing Support (Side View |
