Description
SPECIALLY DESIGNED FOR ‘C’ ARM IMAGE INTENSIFIER.

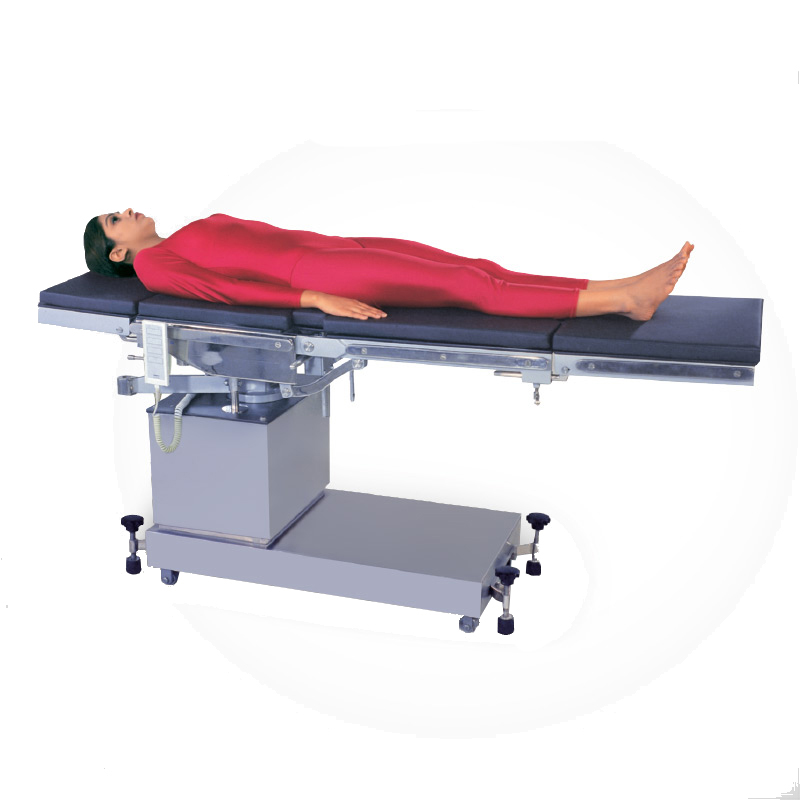

Anand SS-1200 with Additional Panel is a sophisticated yet economical Operating Table Remote Control specially designed for ‘C’ ARM Image Intensifier. Its unique design permits it to excel over competitive offering in the areas of Micro-Neuro, Orthopaedics, Cardiovascular, Ob/Gyn, Ophthalmology, ENT, Urology and other major or minor operations
SALIENT FEATURES
- The Electro-Mechanical driving mechanism assures smooth and quiet movements of the Table Top.
- The Table Top is made of Radio-Translucent material for Fluroscopic capability.
- Operating Positions including Height Adjustment, Trendelenberg, Reverse Trendelenberg, Lateral Tilt and Back Section can be controlled quickly and accurately with the help of lightweight Hand Control Unit.
- Interchangeable Head & Leg sections and manually operated by the means of precise Ratchet System.
- The excentrically positioned Table Top, without cross members, to optimize image intensifier accessibility for both A/P & Lateral Exposures.
- Base and Column covers are made of Stainless Steel for easy cleaning and hygiene.
STANDARD ACCESSORIES
| L-shaped Anaesthetic Frame | 1 Pc. |
| Shoulder Support with Pad | 1 Pair. |
| Arm Board with S.S Top | 2 Pcs. |
| Lateral Support with pad | 1 Pair. |
| Wrist Strap | 1 Pair. |
| Knee Crutches Goepal Type | 1 Pair. |
| Water proof Rubber Mattress | 1 Set. |
OPTIONAL ACCESSORIES
- Ortho-Surgery
– Orthopaedic Leg Traction Device.
– Orthopaedic Hand Traction Device.
– Hip Nailing Support (Inner thigh rest with pad).
– Tibia Support (L-shaped knee rest with pad).
– Steinmein Pin.
– Radio
-Translucent Hand Operating Table.
– Poplital Support
- For Miscellaneous
– S.S. TUR Drainage Tray with sieve and drain hose.
– S.S Drainage Tray with drain hose.
– Radio-Translucent Table Top for Radiography (X-Ray)
– Cassette Holder with Carrier for A.P. Radiography.
– S.S. Lateral Cassette Holder.
– S.S. Mayo’s tray with frame hanger.
– S.S. Instrument Tray with frame hanger.
– Adjustable Arm Support with cushion
– Saline Drip Rod with Clamp.
- For Neurosurgery
– Neurosurgical Attachment for Prone / Sitting Up-position Head Rest.
– 3 Pin Skull-Clamp for Mircro-Neuro-Surgery.
– Sugita Head Clamp for Prone/Sitting Position.
– Spinal Bridge.
– ‘M’ type face Head Rest.
 |
 |
|---|---|

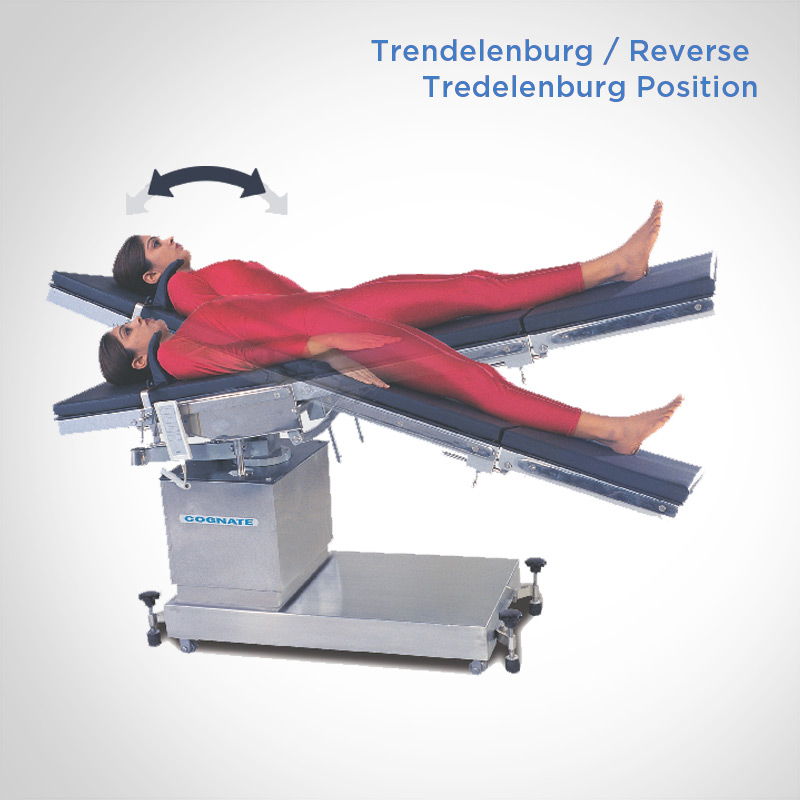

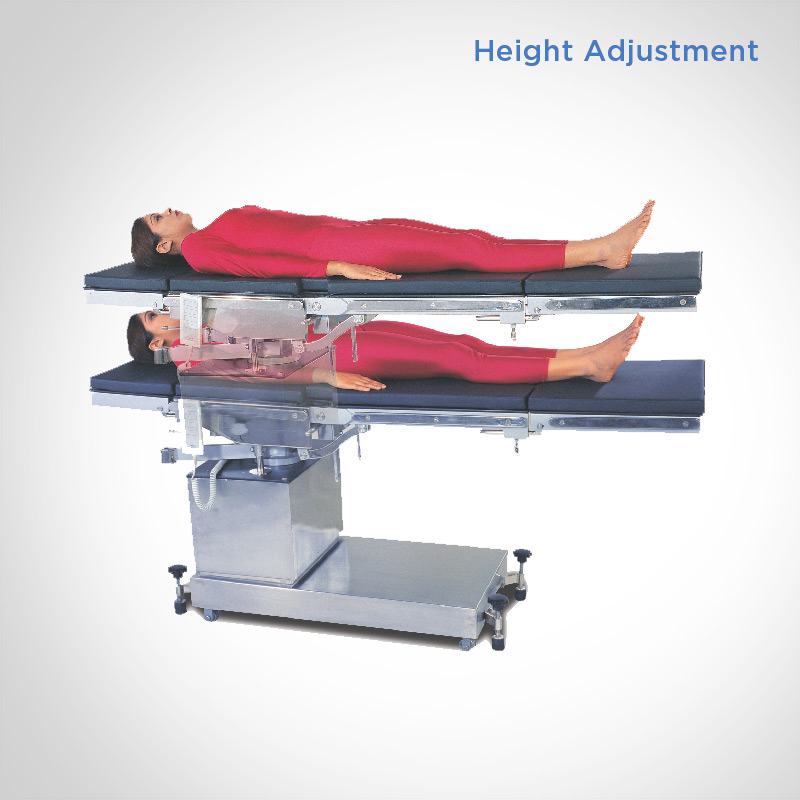

| Height Adjustment | Trendelenburg / Reverse Tredelenburg Position |
 |
|
|---|---|
| Lateral Position |
 |
 |
| General Surgery, Gynaecology, Urologyy |
Lithotomy Position (Gynaecology Position) |
 |
 |
| Lateral position with break for nephrectomy procedure (Kidney Surgery) |
Abdominal Surgery (Thoracic Surgery) |
 |
 |

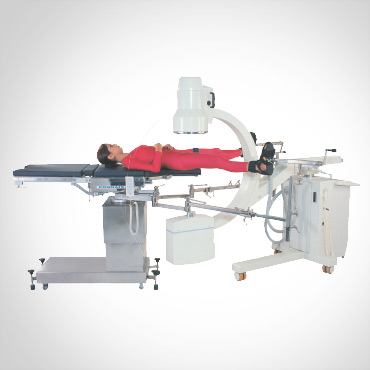

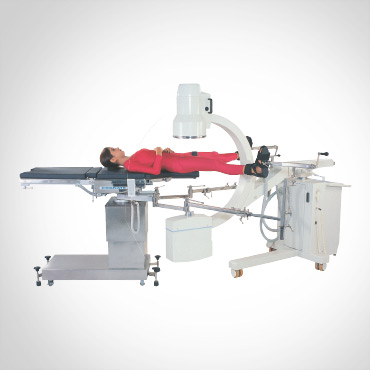

| Surgery of the neck of femur (Front View) |

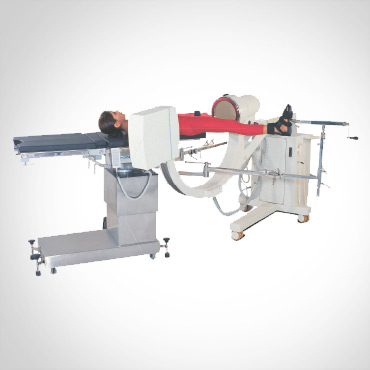

Surgery of the neck of femur (Side View) |
 |
 |

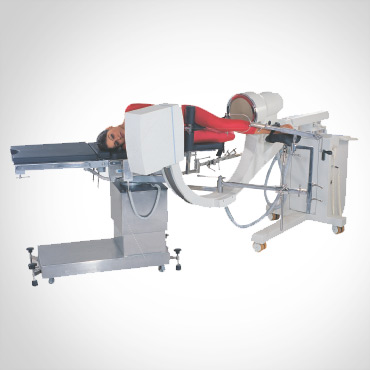

| Femoral stem fracture procedure in lateral position with Steinmein Pin holder using Hip Nailing Support (Side View) |

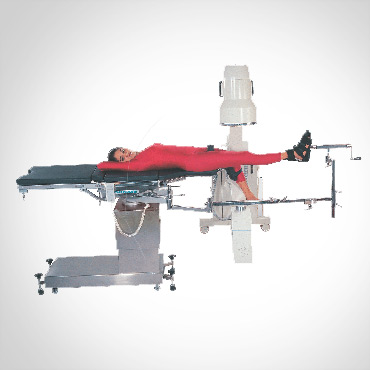

Femur Treatment in Supine position (Front View) |
 |
 |
| Femoral stem fracture procedure in lateral position with Steinmein Pin holder using Hip Nailing Support (Front View) |
Surgery of the neck of femur (Front View) |
 |
 |

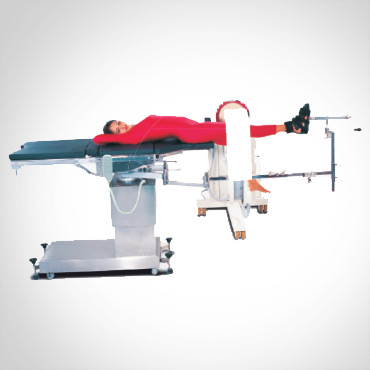

| Femur Treatment in Supine position (Side View) |

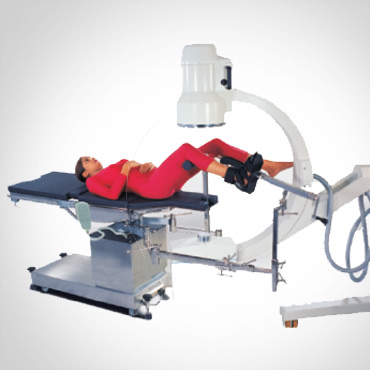

Tibia Nailing using Tibia Support (Front View) |
 |
|

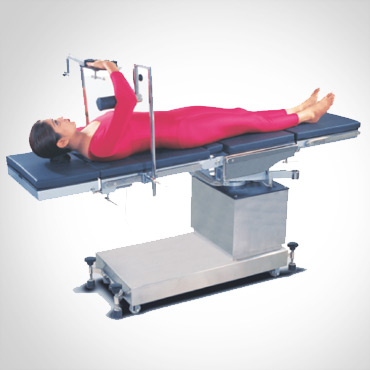

| Nailing of the humorous by the elbow using Hand Traction Device |
 |
 |
| Neurosurgical procedure in the Prone/Supine position using Prone position Head Rest |
Neurosurgical procedure in Prone position using Sugita Head Clamp |
 |
 |
| Neurosurgical procedure in the Prone/Supine position using ‘M’ type face Head Rest |
Spine surgery using Spinal Bridge |
 |
 |
| Neurosugical procedure in the sitting position using Sitting Position Head Rest |
Neurosurgical procedure in the sitting position using Sugita Head Clamp |
|
|
| Neurosugical procedure in the sitting position using ‘M’ type face Head Rest |
