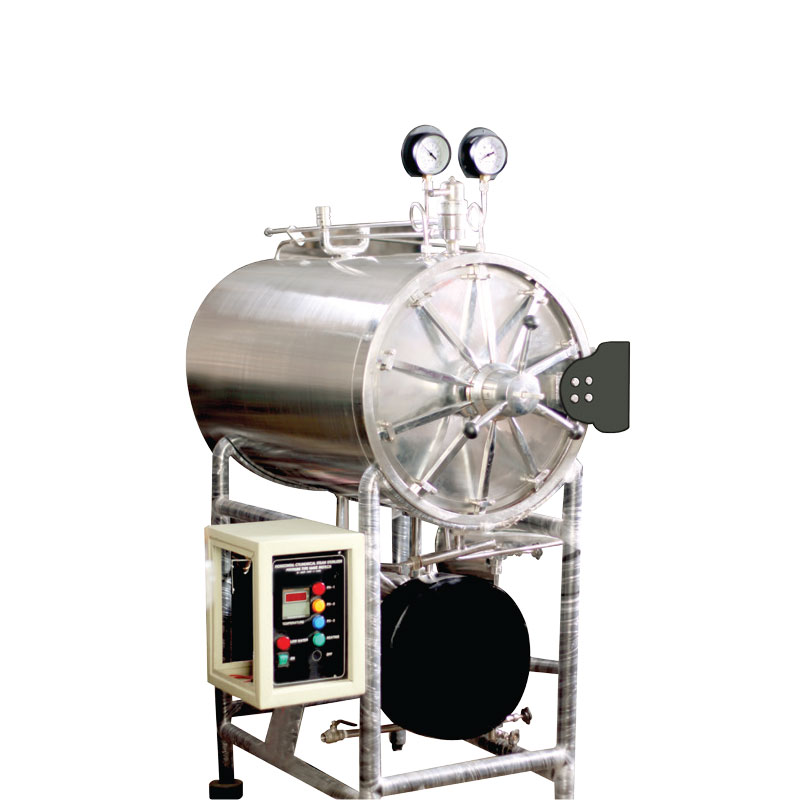

Description
- Working pressure up to 1.36 Kg/cm2 (20 P.S.I.G), Vacuum up to 250 mm (10”) of Hg
- Construction S.S. 316 or S.S 304 chamber and jacket of boiler grade steel with reinforcements.
- Optional door inner construction either S.S.304 or M.S. lined S.S.
- Radial Locking System, Sliding door with tongue & groove system for big size models. Fitted with Silicon Gasket. Multi-port valve operation available for size up to 2’ x 3’ x 5’ (850 liters)
- Large capacity units with direct steam operation have diaphragm type PRV, Small capacity units with steam generator with pressure switch with low water cut off system.
Available Sizes (DIA mm x Depth mm):
• 400 mm x 600 mm
• 500 mm x 1200 mm
• 500 mm x 900 mm
